M12 Connectors
M12 connector is the most commonly used connector in factory automation, widely used in sensors, robots, motors, packaging and conveyor systems, rail transportation, etc. The common M12 connector Pins are 3pin, 4pin, 5pin, 8pin and 12pin male&female. The M12 is available in A, B, and D coded. M12 connector includes M12 Panel Receptacles, M12 Field Wirable Connector, M12 Molded Cable Connector, and M12 Adapter.
Applications
-Miniature sensors
-Industrial camera
-Electric bike
-Packaging, Labeling & Logistic
-Factory automation and Fieldbus module
Quality Statement
Screws/nuts: Brass with 120µnickel plated, CNC parts.
Male contacts: Brass C3604, 3µ gold plated on nickel base, machined solid pin.
Female contacts: Phosphor bronze C5441 with 3µgold plated on nickel base, machined solid pin.
Temperature Range: Dynamic -25 to +85。C, Static: -40 to +85。C/105。C
Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
ROHS compliant.
| Specification | |||||||
| Number of contacts | 3 | 4 | 4 | 5 | 5 | 8 | 12 |
| Coding | A | A | D | A | B | A | A |
| Connector locking system | Screw, overmold | ||||||
| Termination | screw clamp/锁螺丝,solder/焊接,crimp/压接,PCB/插板式 | ||||||
| Wire gauge | 0.14/0.25/0.34/0.5mm / (26/24/22/20 AWG) | ||||||
| Cable OD | 6~8mm | ||||||
| Operating temperature | -25°C~+85°C | ||||||
| Mechanical operation | ＞100 mating cycles | ||||||
| Rated voltage | 250V | 60V | 30V | ||||
| Rated current (40°C) | 4A | 2A | 1.5A | ||||
| Protection degree | IP67/IP68 | ||||||
| Standard Reference | IEC 61076-2-101 | ||||||
| Contact resistance | ＜10mΩ | ||||||
| Insulation resistance | ≥100MΩ | ||||||
| Materials and Plating: | |||||||
| Shell Material: | Brass nickel-plated | ||||||
| Sealing Material: | Epoxy resin/Rubber | ||||||
| Contact Material: | Phosphorus copper gold-plated/Brass copper gold-plated | ||||||
| Insulator Material: | PA66 | ||||||
| Molding Material: | TPU/PVC | ||||||

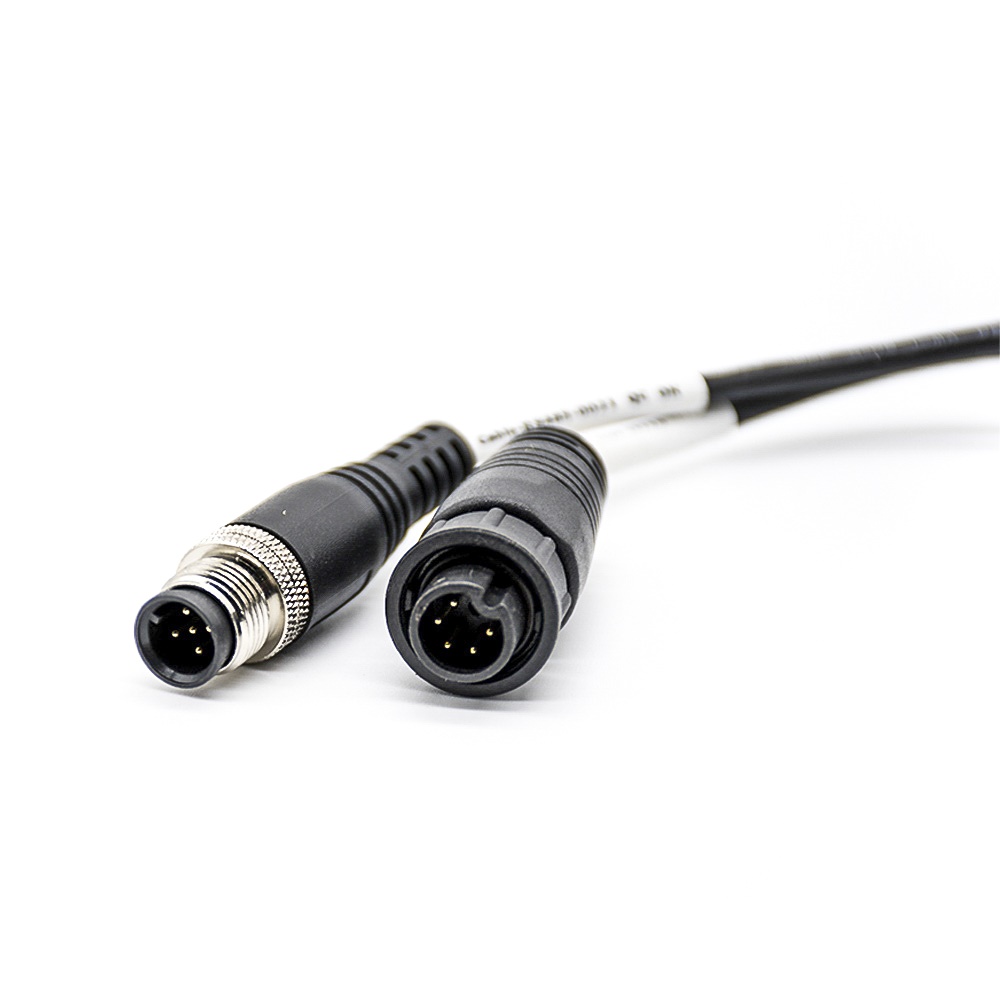

M12 Cable Assembly
M12 Cable is made up of M12 molding connectors and PVC/PUR jacket cable. Therefore, there are A-code, B-code, D-code key options of male and female molding type M12 connector according to applications.
M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
The M12 over-molded cables provide safe and reliable communication between devices and across networks within an industrial environment. A ready-to-plug solution for versatile systems to be quickly and easily established.
Ideal for Ethernet & Fieldbus application with a wide selection of connector configurations and jacketed cable materials.
Features
- M12 connector pin configurations: 3 pin, 4 pin, 5 pin, 8 pin and 12 pin.
- Non-removable Contacts
- Meets IP67/IP68 water proof requirements
- M12 X-Code connectors passed Cat6A testing within customer applications (10 Gbps)
- M12 D-Code design to handle up to 100Mbps
- -40°C to +85°C Temperature Range
- Available as loose piece or as pre-made M12 cables
